Nameplate Quick Edits
•Quick Nameplate Edits are currently only available for
•Panelboard
•Users can edit Name plates without resubmitting for Tech Review by selecting the Pencil in the ‘Designation’ Tab on the applicable lines
•Please note this is only an option of name plates is selected in the configuration prior to this edit being made, and ICR will still be required to make this change
.png)

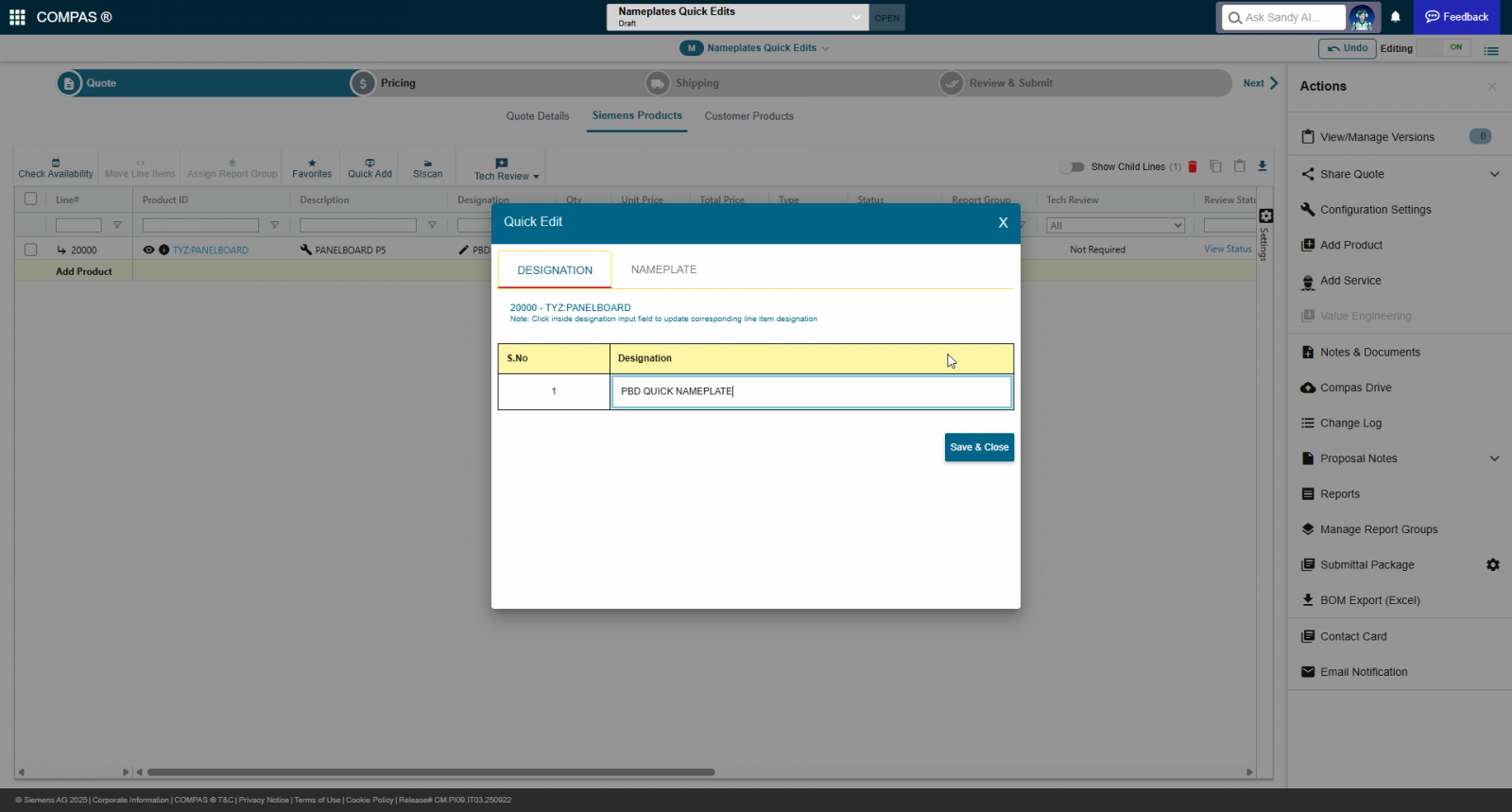

•After clicking the pencil, a new pop up will appear on screen
.png)
•When pop up appears users must select the “nameplate” tab changing the pop up to the Nameplate Edit screen
.png)

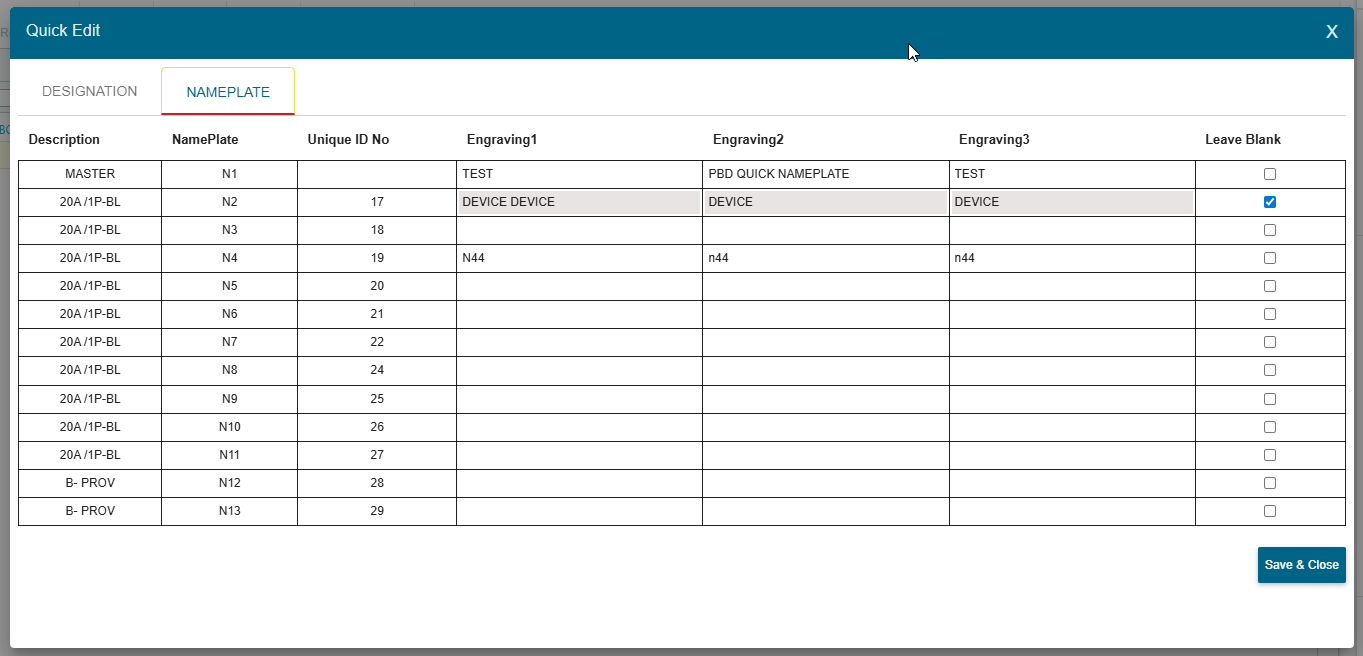

•Users can now edit all nameplates pre-added in the configuration
•Please note that if new nameplates are needed, a configuration and CIR will be needed to make this change
•Select the ‘Save and Close’ button in the bottom right corner
•Name plate changes will be saved in the configuration
•Changes can be confirmed by viewing the drawings output in the drawing reports section for panelboards
•Continue steps for submitting ICR
