COMPAS KB Release : June 2025

• Breaker_MCCB

• Busway Systems

• LVS RCS

• Manual Line

• Panelboard

• PowerMod

• Russelectric

• SieBreak

• Switchboard

• Removed obsolete Molded Case Switches (MCS)

• Removed obsolete EB3100S Enclosure

Technical Info

• KB Version: 00.00.11.01

• Price Version: 20250501

• Release Date: 6/2025

3/6 Bus Plugs:​

• 3% Price increase​

Bus Plug and Busway Cubicle​:

• Removed Sentron Solid State Circuit Breaker​

Busway - Tee:​

• Appended Catalog # in QQ lines to show tee orientation (flat or edge)​

Busway - Single Drop Hangers:​

• Corrected 1600A M-Rated catalog # ​

Technical​ Info

• KB Version: 00.00.53.01​

• Price Version: 20250501​

• Release Date: 6/2025​

Functional Costing Updates (EPNABTPL-5209)

• Implemented new Functional Cost values for FY25 (BTKBTL-1702)

• Updated Custom Component cost calculation rates (BTKBTL-1127)

Miscellaneous Updates

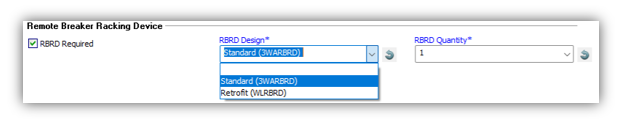

• New Selection for RBRD Design (BTKBTL-1665)

• Standard (3WARBRD) is Universal for both 3WA and WL breakers.

• Retrofit (WLRBRD) can be used to drive old style brackets for use with WLRBRD in field.

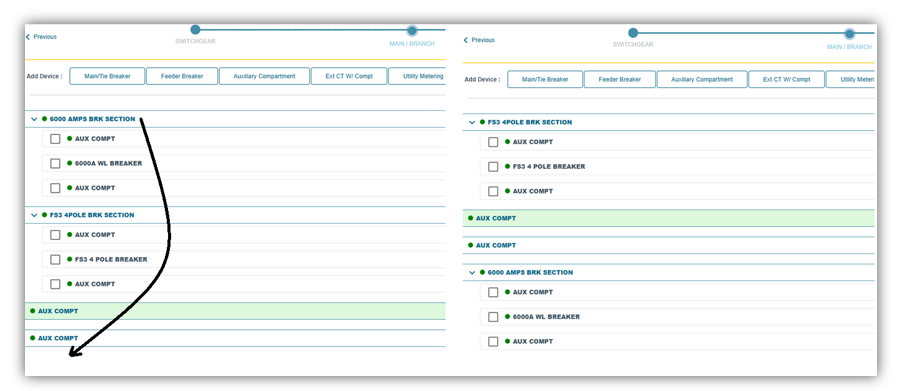

• Allowed Breaker Sections (6000A and FS3 4P) to be able to be dragged and dropped in Main/Branch tab (BTKBTL-1697)

Technical Info

• KB Version: 00.00.60.01

• Price Version: 20121101

• Release Date: 6/2025

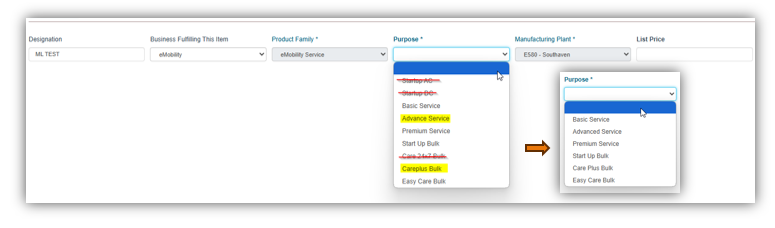

• eMobility Manual Line updates to match with change in go to market strategy

Removed:

• Startup AC, Startup DC -> please use Start Up Bulk instead

• Care 24x7 -> Standard with each charger

Description update:

• Advance Service -> updated to Advanced Service

• Careplus Bulk -> updated to Care Plus Bulk

Technical Info

• KB Version: 00.00.19.07

• Release Date: 06/2025

• P5 Plug in Panel: fixed issue with 3VA65,66 not laying out correctly

• P5 Plug in Panel: Added auto weight calculation for CBC/IBC 2022 Ip=1.5 Seismic rated Panels to Ensure Panel doesn’t exceed 900Lbs

• xGx breaker phase out: removed LG,NG and HG breakers from the selection list

• Resolved issue with configurations conflicting when HBQDQE & HBQDPF-GFCI breakers are placed in unit space in panels that are series rated

• Resolved issue with Incorrect lug description showing for 3VA41 breakers

Technical Info

• KB Version: 01.01.110.01

• Price Version: 20250101

• Release Date: 06/2025

PowerMod update: 3VA based Cross bus mains, Main Feed-thru and Feed-thru Mains above 800A

• are being made saleable and are Configurable in COMPAS

• These are the remaining families of 3VA based products that are available now available for selection and sale.

PowerMod update: Sentron Based catalog numbers are being removed from tables where replacement 3VA modules are fully implemented.

Being implemented by family.

(all except Cross bus mains, Main Feed-thru and Feed-thru Mains above 800A -> these are planned for next release)

• (BTKBTL-108 and BTKBTL-676)

Note: These changes will simply selection process and avoid some of the conflicts in COMPAS due to both Sentron and

3VA being visible during the selection process.

Minor updates and user info:

• COMPAS PowerMod Maintenance items:

• A) Meter Combo conflict issue – resolved.  (BTKBTL-963)

• - When reconfiguring some old configurations - the 225A default Main Amp setting was getting set.

COMPAS PowerMod Update items:

A) PowerMod Total Meter Count added to Configurator and Estimate Sheet  (BTKBTL-1895)

• During Configuration, users can see total number of meter sockets available and a total per type to save time.

B) PowerMod Elbow enhancements: (BTKBTL-1896)

• This is one step towards improving the drawing/view of Elbows in a lineup.

• User can also input lengths of both legs for the adjustable Elbow.

More to come as we improve the layout drawings.

Technical Info

• KB Version: 00.00.38.01

• Price Version: 20250501

• Release Date: 06/2025

Russelectric ATS

• No Changes

Technical​ Info

• KB Version: 00.00.35.01

• Price Version: ​​02062025

• Release Date: 06/16/2025

Russelectric ATS Mods

• None

Technical​ Info

• KB Version: 00.00.35.01

• Price Version: 20250210​​

• Release Date: 06/16/2025

Russelectric LV/MV/CNTRL SWG

• “System Information” tab renamed to “Lineup Information”

• Default cubicle heights updated for Low Voltage

• Cubicle adders for Wireway and Vent hood added

• Updated Default depths and widths for Low Voltage

Technical​ Info

• KB Version: 00.00.30.01

• Price Version: 20250101​​

• Release Date: 06/16/2025

Russelectric SWG Mods

• None

Technical​ Info

• KB Version: 00.00.22.01

• Price Version: 20250101​​

• Release Date: 02/10/2025

• 10% list price increase for all parts throughout the product.

• Added Custom Modification under Accessories.

Drawing Updates

• Combined Drawing output to include all Front, Plan, Side & Electrical view on the same sheet.

Technical Info

• KB Version: 00.00.16.01

• Price Version: 20251605

• Release Date: 05/19/2025

3VA:

• Automatically created common compartment for breakers with ZSI only

• Correct 1200A panel mounted, vertically oriented device height

• Correct section width for panel mounted 3VA mains with alternate incoming lugs

• Enable 400-600A inverted main option

3WA:

• FS1, 38W phase 1 (standard service section 38W with FS1 main)

• Correct device placement for 70”H thru main

Auto throw-over:

• Remove HMI display selection (always included with ATO

BPS:

• Correct duplicate one-line images

• Update AF/AFGF catalog numbers

HCP:

• Prevent using HCP when non-standard paint selected

Incoming:

• Allow limiter lugs when 150/200K AIC

Metering:

• Add selection to specify CPT size

• Change 9410 default power supply to 120VAC

Multi-meter Kit:

• Add PV Device selection to SMM/MMS device

SPD:

• Prevent using panel mounted SPD when non-standard paint selected

Utility Metering:

• Add technical review when NEMA or Siemens standard utility name is selected

• Prevent LADWP with B-Phase high leg system voltage

• Update Eversource utility names

VBS:

• Prevent using VBS when non-standard paint selected

Switchboard:

• Add complexity tab for scheduling

• Add selection to specify E760 manufacturing location

• Add global selection for 3WA secondary terminal disconnects

• Change manufacturing location selection to be visible to PMO user role

• Move thermostat, humidistat, & heater control power to customer metering accessories

• Prevent 25W section with auxiliary compartment and enclosure with front extension

• Prevent double doors for outdoor with slanted roof option

• Prevent gutter cover mounted IR windows when non-standard paint selected

• Remove technical review for CA Options, SEM3, and Seismic 1.5

• Update front view cover lines when greater than 2000A Dominion Power bussed utility

• Update insulated bus drawing note

Canada Updates

• Allow 4” channel sill with close coupled XFMR connection

• Enable 100A frame branch breakers

• Enable DAS Activation/Indication selection

• Enable panel layout selection

• Temporarily prevent configuring 3WA breakers

Technical Info

• KB Version: 01.01.85.02

• Price Version: 2025-05-01

• Release Date: 6/19/2025
